Vintage Ames Lettering Guide by Olson Mfg. Co. Drafting Tool

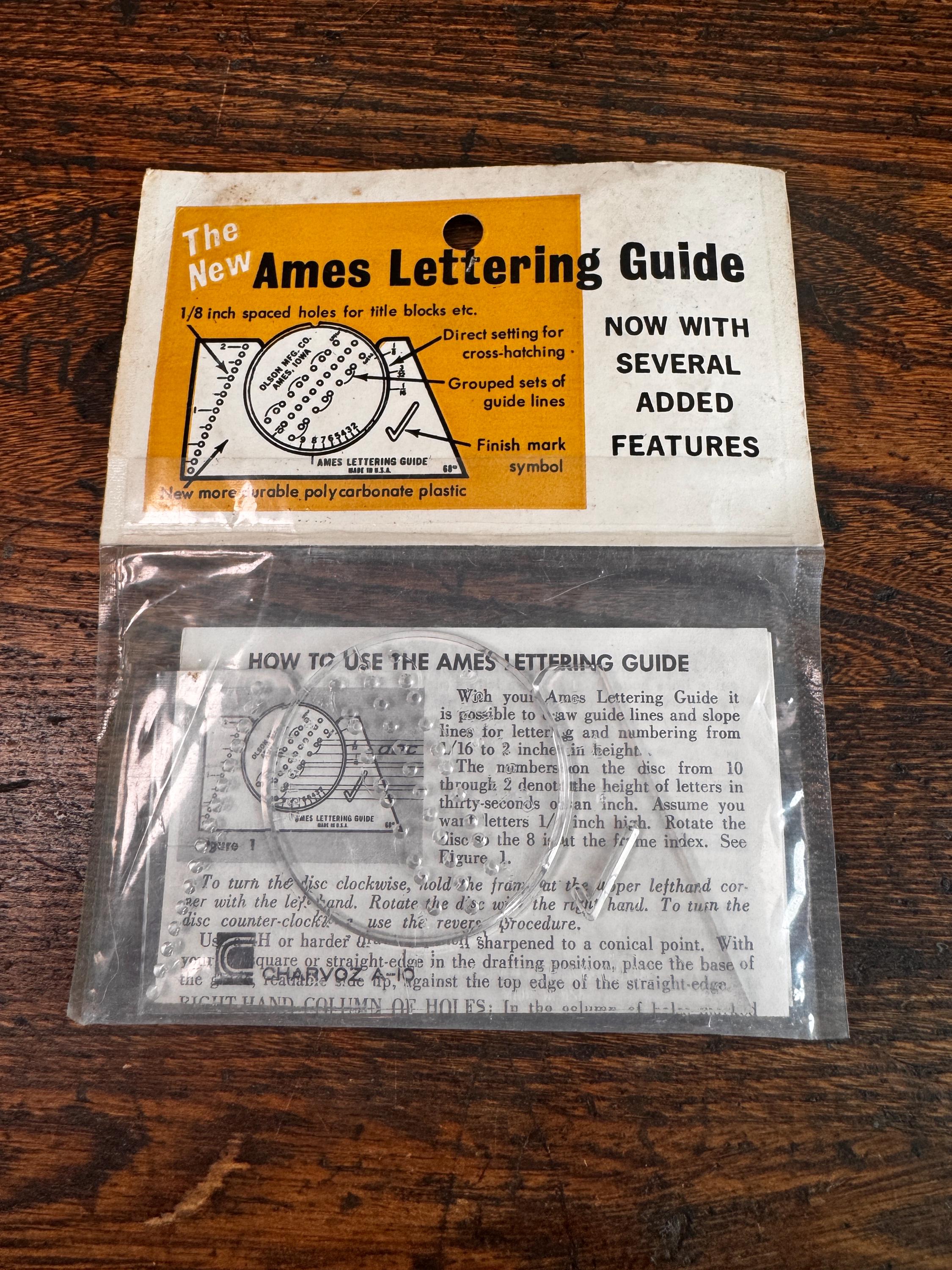

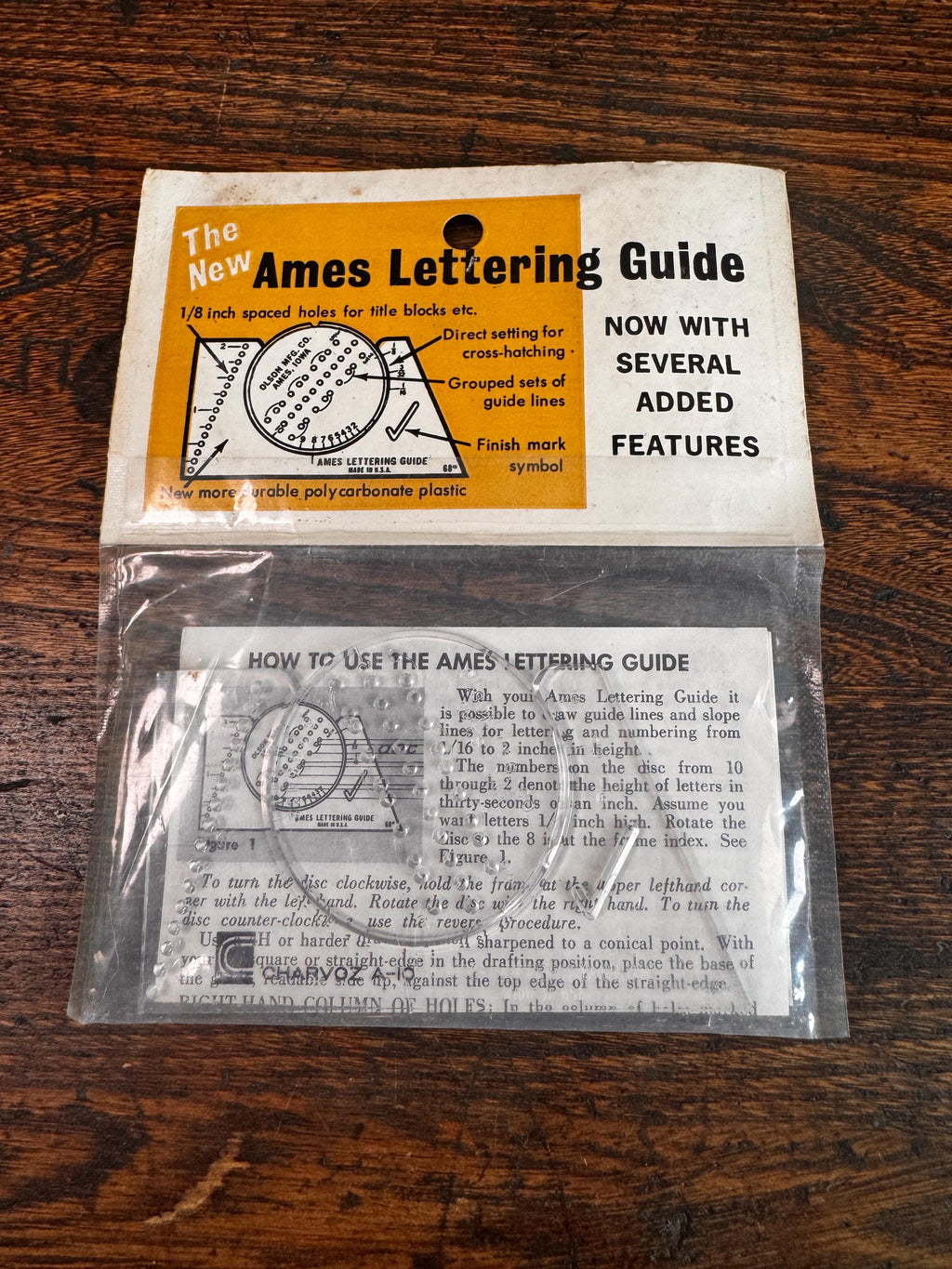

Discover the precision and craftsmanship of this vintage Ames Lettering Guide, manufactured by Olson Mfg. Co. This classic drafting tool is designed to help you create perfectly spaced and aligned lettering for technical drawings, architectural plans, or artistic projects. Its clear polycarbonate plastic construction offers durability and ease of use, making it a reliable companion for any lettering task.

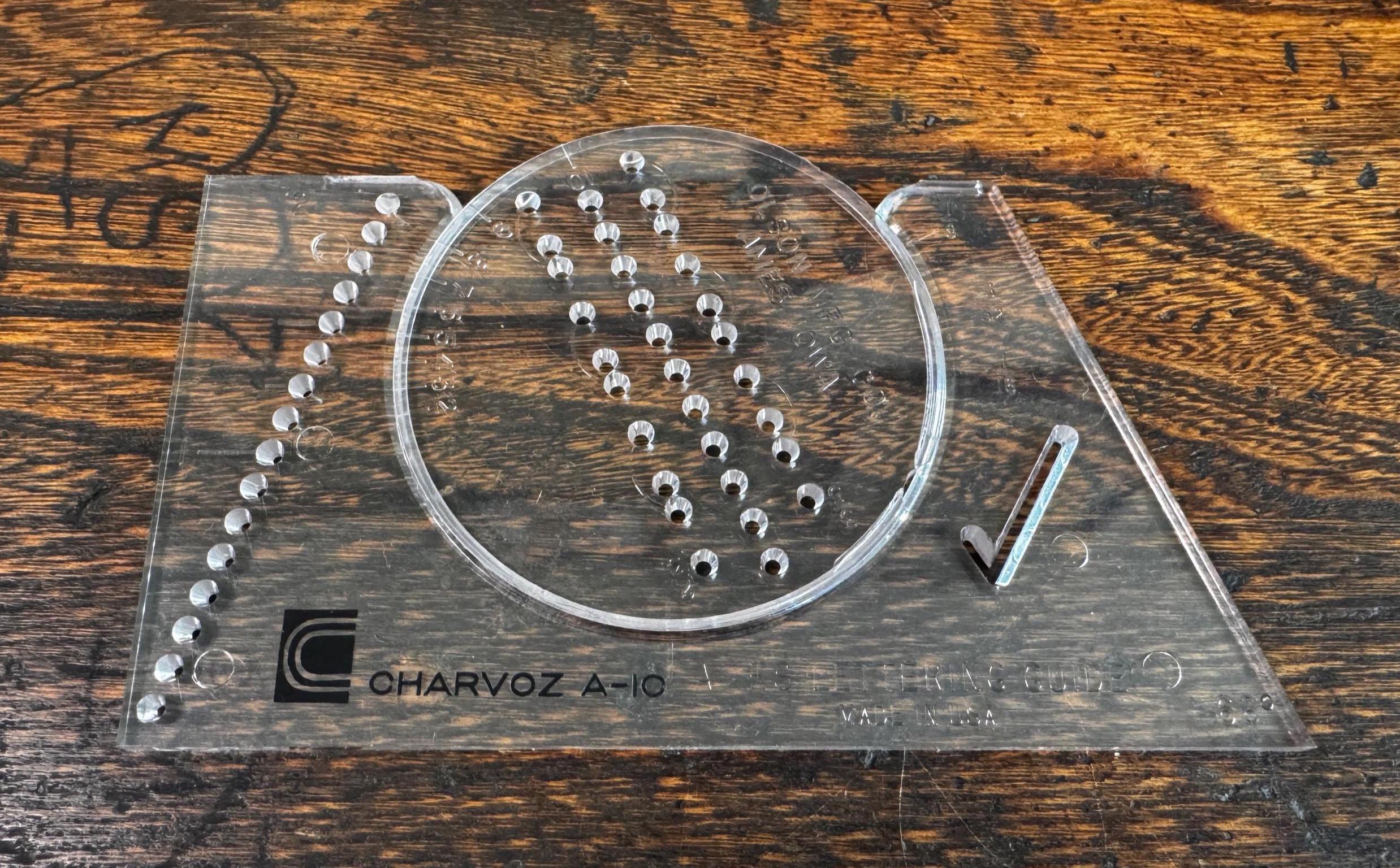

The guide features 1/8 inch spaced holes for title blocks and grid lines, along with grouped sets of guide lines and direct settings for cross-hatching. The rotating disc allows for easy adjustment of letter heights from 1/16 to 2 inches, accommodating a variety of lettering sizes. Whether you're a hobbyist, student, or professional, this tool enhances accuracy and neatness in your work.

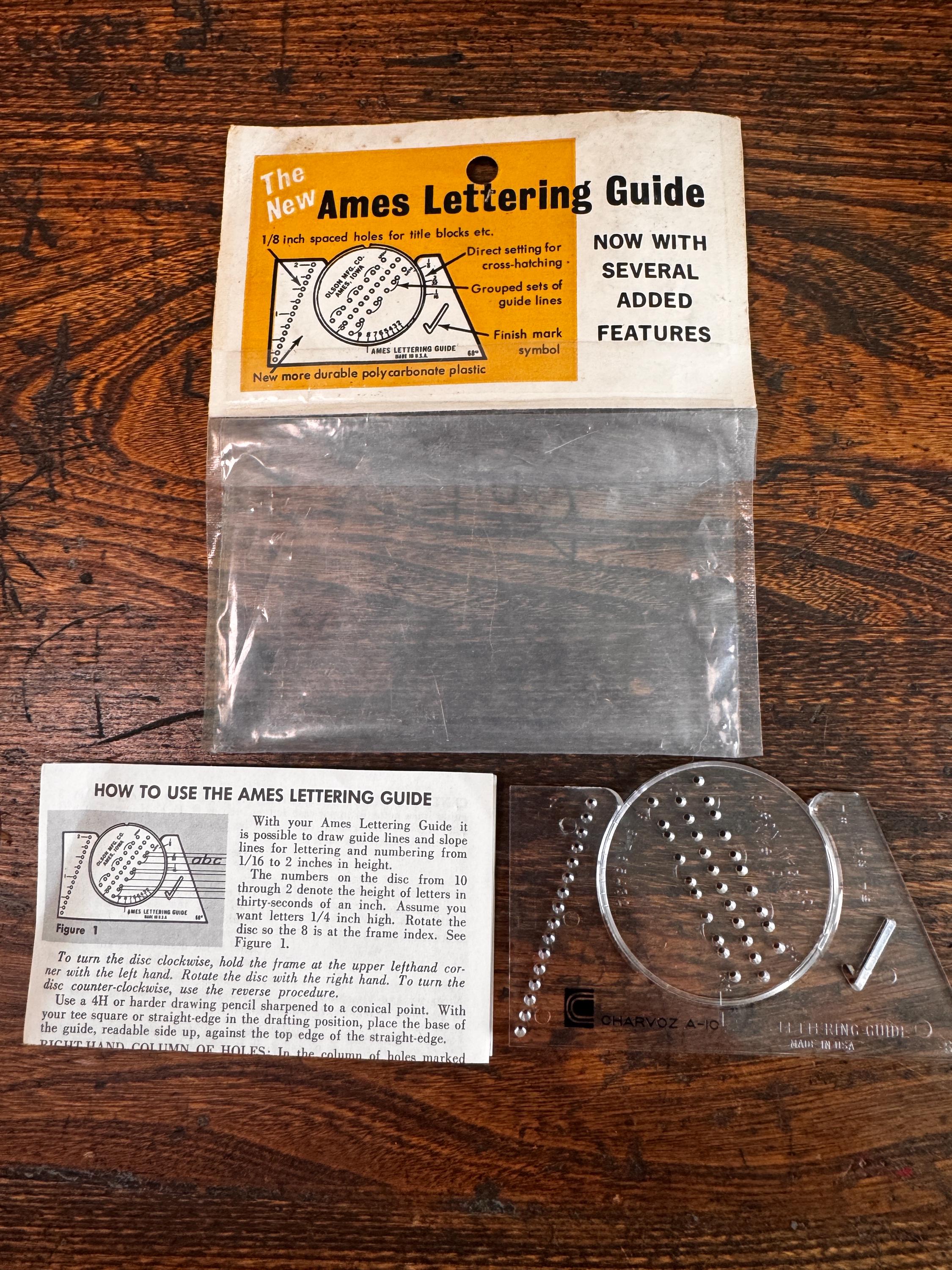

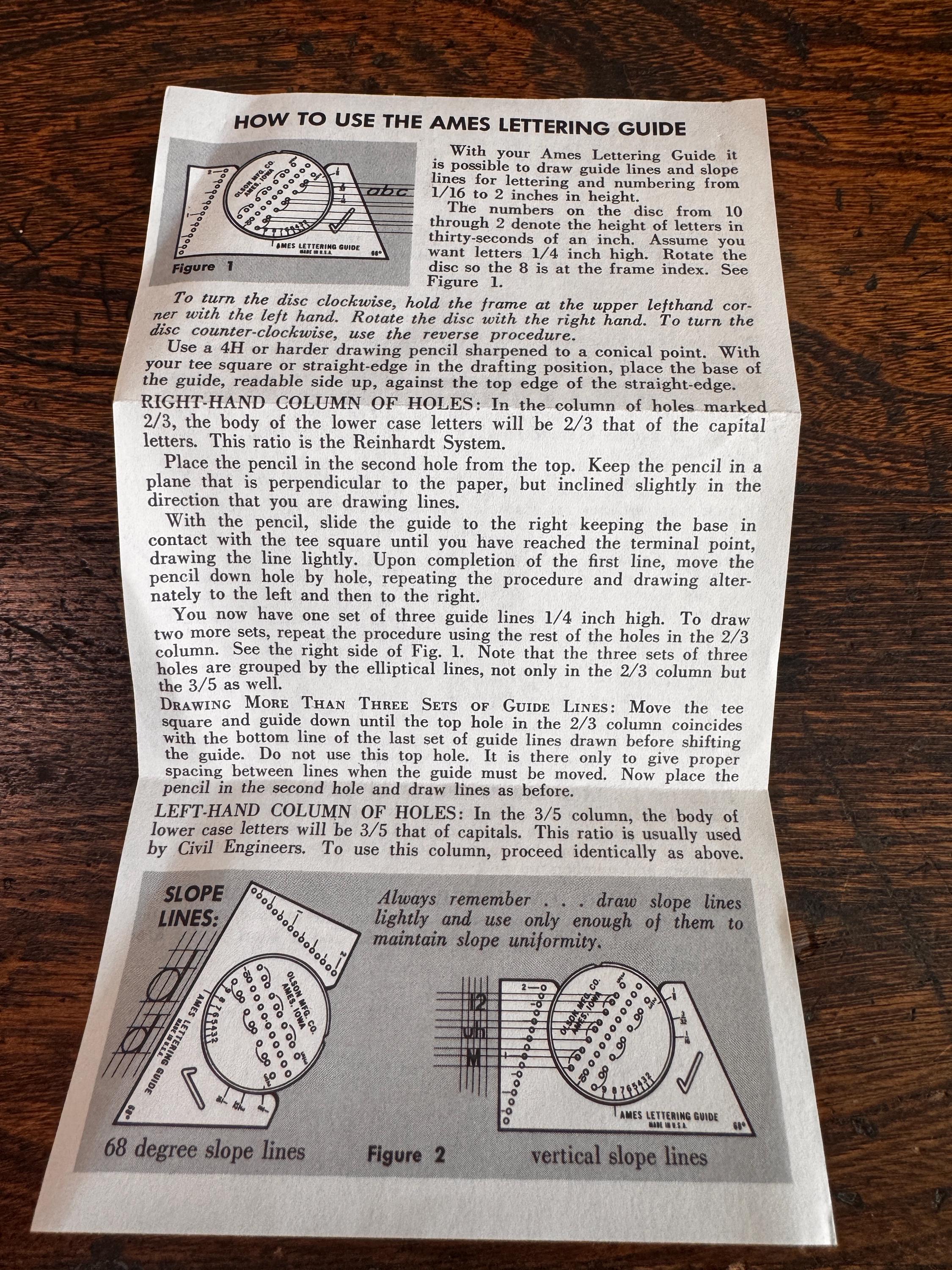

Included with the lettering guide is the original instruction sheet, providing detailed guidance on how to use the tool effectively. The compact size fits comfortably in your hand, making it convenient to carry and store. This vintage piece is a wonderful addition to any drafting or lettering collection, combining functionality with nostalgic appeal.

Details:
Made by Olson Mfg. Co.
Constructed from durable polycarbonate plastic
Features 1/8 inch spaced holes for title blocks and grid lines
Includes rotating disc for adjusting letter height from 1/16 to 2 inches

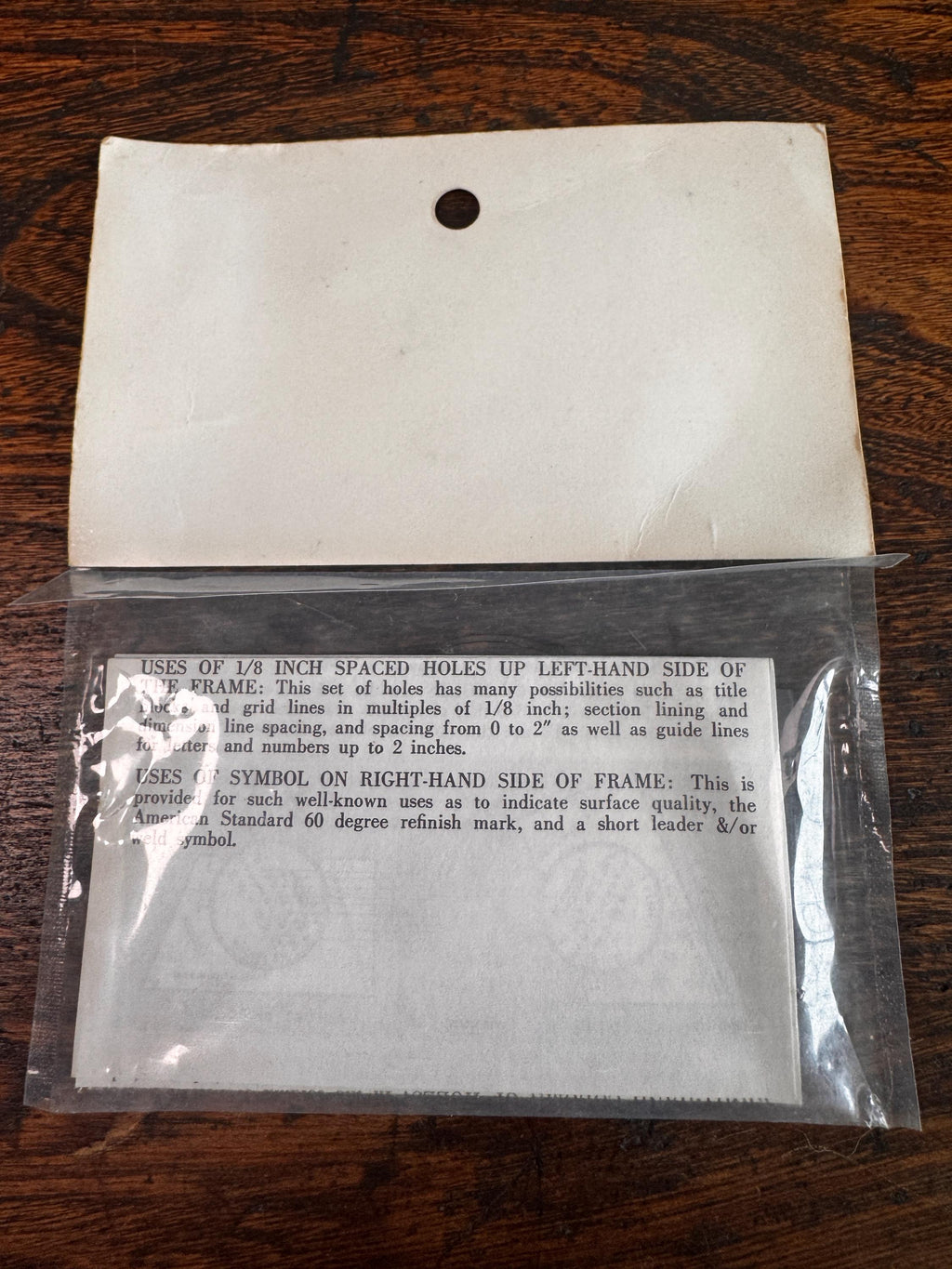

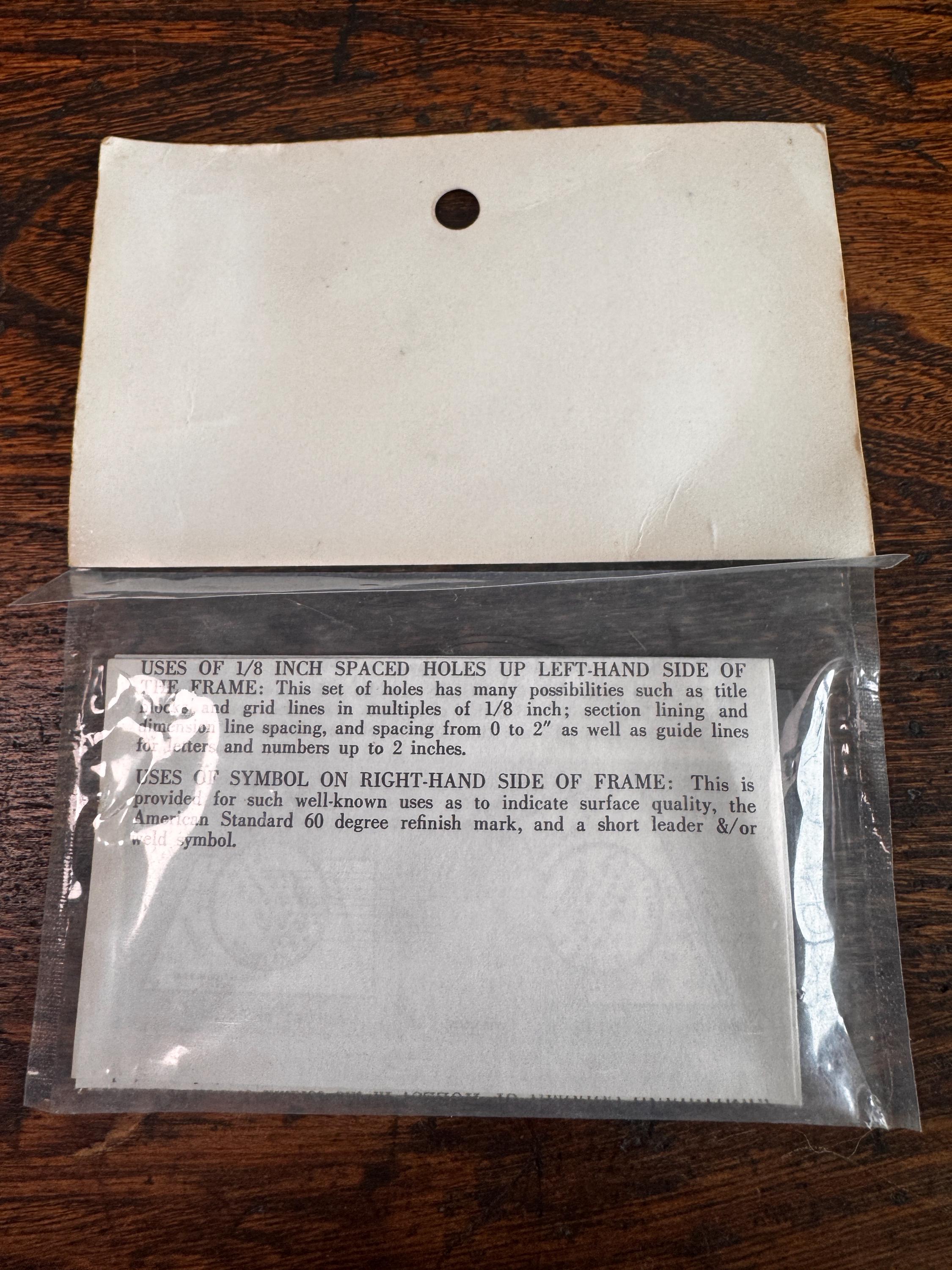

Original instruction sheet included
Made in USA

Condition:
Vintage condition with minor signs of age
Clear plastic with no visible cracks or chips
Instruction sheet shows some wear but is legible
Tool appears unused or gently used
